OBDuino is a device that connects to the OBD-II plug of your CAN enabled car, and displays various information about your car (RPM, speed, etc). It can also display custom information for 3 trips: the current trip which reset each time the engine is started, a user resettable general trip and the user resettable tank trip too.
Each trip can display average fuel consumption, quantity of fuel used, quantity of fuel wasted at idle (when speed is 0) and distance travelled. Remaining distance, calculated using the tank average and the tank size, can also be displayed.
It displays 4 pieces of information at a time and has 3 virtual displays so it can display up to 12 different pieces of data. Each display screen can be configured, as well as the use of the metric system (kilometers, liters, etc.) or the US imperial system (miles, gallons, etc.).
It also detects Diagnostic Trouble Codes (DTC) that turn on your Check Engine Light, as well as the pending DTC that were detected during last driving cycle, and provides the ability to clear these codes (fault ones only, by choice) when finished.
It detects the CAN speed and identification of your car the first time it is plugged in. When the engine is turned off, it shuts itself down after a few seconds and goes into sleep mode, until you turn the key back on. It can also be locked to the car, meaning if it's stolen it will not work on others cars.
Values of the various PIDs are outputed from the device and can be recorded with a serial port adapter (using a MAX232) on a laptop or directly on a SD card using a small daughterboard.
Active device consumes about 35mA. Eventually it will consume as little as 0.5mA in sleep mode (goal, will be tested with the all-in-one PCB final device).
So far it has been tested on:
OK: 2007 Hyundai Elantra, 2009 Hyundai Sonata, 2008 Pontiac G5, 2008 Saturn Vue, 2008 Chevrolet Cobalt, 2006 Honda Civic, 2008 Dodge Caravan
Not OK: Jeep Patriot 2008, Honda Odyssey 2007, I will retest those soon
It is sometimes hard to know if your car supports CAN bus protocol or not, surfing the web I found information on:
2003+ Ford, Mazda, GM
2004+ Chrysler, Lexus, Toyota, Volvo
2005+ Audi, Mercedes
2006+ Honda, Saab, Mitsubishi, Volkswagen
2007+ BMW, Subaru, Hyundai
It may or not work if your car is 2007- but all 2008+ cars sold in North America shall support it.
For European market cars (Renault, Peugeot, Citroën, Fiat, Seat, Skoda, Alfa Romeo, Lancia, etc.) I have no information :-/
see this page.
see this page.
see this page.
Here is various screenshots of almost everything you can see on the screen.

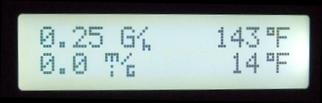

| Metric | Imperial |
|---|---|
| Instant cons: At idle so it displays per hour, when a certain speed is reached, display change to L/100 |
|

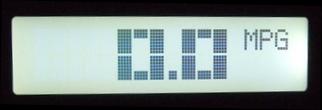

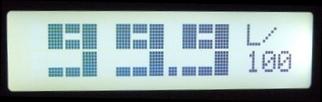

| Average cons: The car has not moved yet so it displays the maximum, if it's less than 10.0 it will display 2 decimals e.g. 6.57 ![]() |
If it's greater than 99.9 it will remove the decimal e.g. 123![]() |

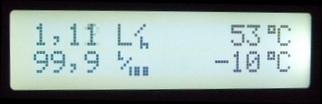

Screen 1:![]() |
![]() |

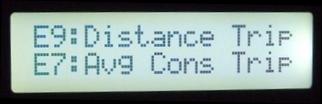

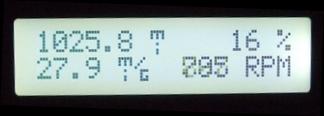

| Screen 2: When you change screen, the two lefts PIDs and description are showned for a second, followed by the 2 rigths ones. I didn't had time to shot the second one! ![]() ![]() |
![]() |

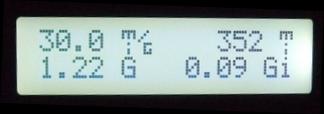

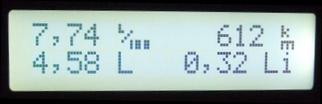

Screen 3:![]() |
![]() |

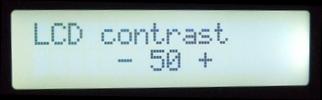

| Display configuration | |
|---|---|

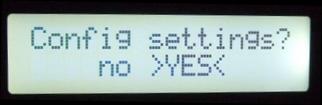

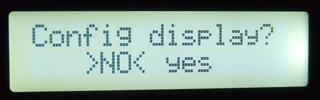

Select yes or no to enter the config![]() |
![]() |
![]() |
![]() |

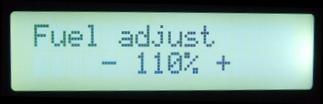

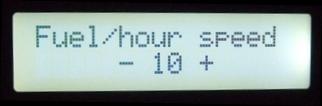

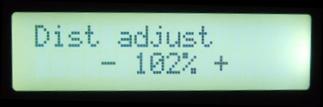

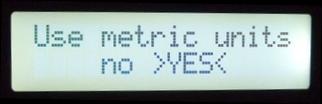

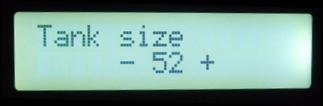

| Settings configuration | |
|---|---|
![]() |
![]() |
![]() |
![]() |
![]() |
|

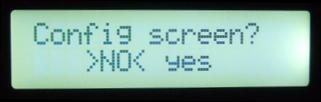

| Screen configuration | |
|---|---|
![]() |

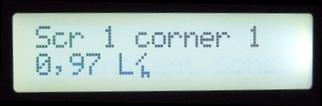

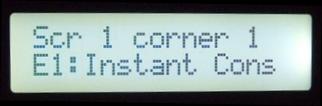

From screen 1 corner 1![]() |
| Display toggles every second between the description and the value ![]() |

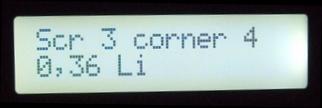

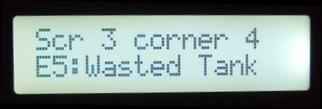

To screen 3 corner 4![]() |
![]() |
|
These are some screens I used at a time.
When the ignition key is turned to the ON position, device starts up and displays:

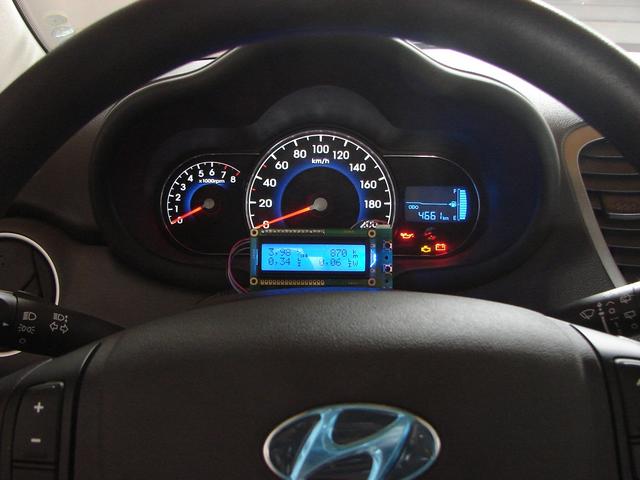

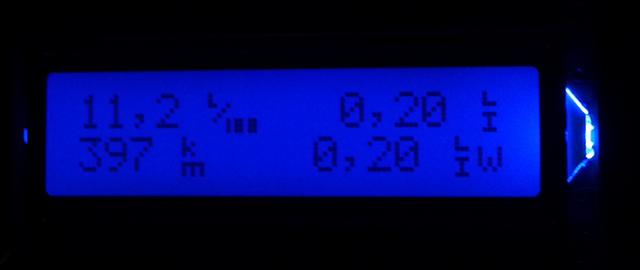

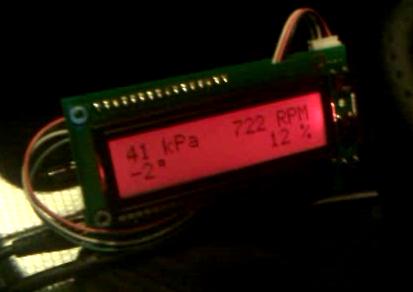

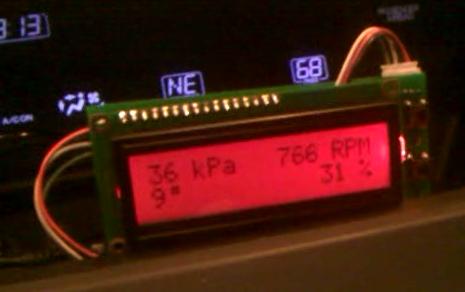

Here is some screenshots of the device while driving:



Here is the three different screen before shutdown, compare with the three firsts above.
